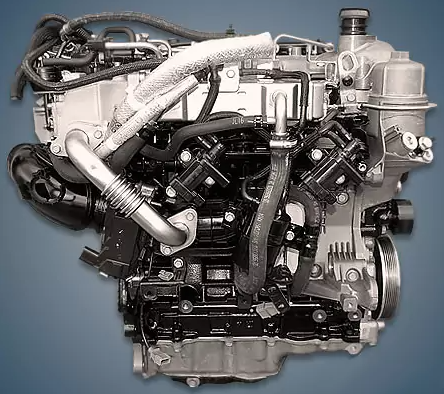

The 2.2-liter A22DMH engine, also known as the Opel Antara 2.2 CDTi, was installed on a redesigned version of the well-liked Antara crossover and assembled in Korea between 2010 and 2015. This power unit’s version for the Chevrolet Captiva C140 is identified by the codes LNQ and Z22D1.
A13DTE, A17DTJ, A17DTR, A20DTH, A22DM, and A22DMH are members of the A family.
Specifications
| Production years | 2010-2015 |
| Displacement, cc | 2231 |
| Fuel system | Common Rail |
| Power output, hp | 184 |
| Torque output, Nm | 400 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 86 |
| Piston stroke, mm | 96 |
| Compression ratio | 16.3 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | no |
| Turbocharging | MHI TD04L |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 5.6 |
| Fuel type | diesel |
| Euro standards | EURO 5 |
| Fuel consumption, L/100 km (for Opel Antara 2014) — city — highway — combined |
11.2 7.1 8.5 |
| Engine lifespan, km | ~240 000 |
| Weight, kg | 225 |
The engine was installed on:
- Opel Antara A (L07) in 2010 – 2015.
Disadvantages of the Opel A22DMH engine
Delphi’s erratic fuel system is the main source of the issue.
Additionally unreliable is the timing chain, which is frequently changed after 150,000 kilometers.
However, you may have the most problems with the version that has a controlled oil pump.
Chips are transported throughout the oil system by such a pump, which frequently jams and drives them.
Additionally, many diesel engines have particulate filter, EGR, and intake manifold contamination.
