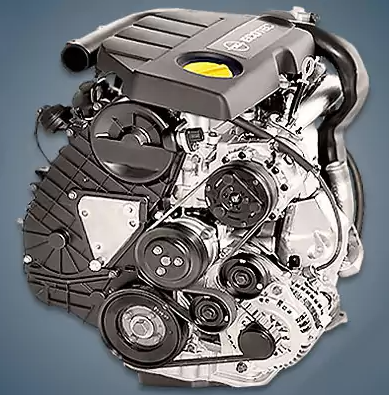

Produced between 2003 and 2010, the 1.7-liter Opel Z17DTH or LPZ diesel engine was fitted to several popular concern models, including the Astra, Corsa, Combo, and Meriva. Fuel equipment made by Bosch and Denso was installed in this unit.
The engines Z13DTJ, Z13DTH, Z19DT, and Z19DTH are also members of the Z family.
The engine was mounted on:
- Opel Astra H (A04) in 2004 – 2007;
- Opel Combo C (F06) in 2004 – 2010;
- Opel Corsa C (X01) in 2003 – 2006;
- Opel Meriva A (X03) in 2003 – 2005.
Specifications
| Production years | 2003-2010 |
| Displacement, cc | 1686 |
| Fuel system | Common Rail |
| Power output, hp | 101 |
| Torque output, Nm | 240 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 79 |
| Piston stroke, mm | 86 |
| Compression ratio | 18.2 |
| Features | intercooler |
| Hydraulic lifters | no |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | VGT |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 5.0 |
| Fuel type | diesel |
| Euro standards | EURO 4 |
| Fuel consumption, L/100 km (for Opel Astra 2005) — city — highway — combined |
6.4 4.2 5.0 |
| Engine lifespan, km | ~400 000 |
| Weight, kg | 170 |
Disadvantages of the Z17DTH engine
Rubber injector sleeve seal leaks are the most well-known engine issue; low-quality antifreeze can occasionally corrode these sleeves and the heat exchanger;
The Common Rail fuel system’s various malfunctions come in second;
As with any diesel engine, the diesel particulate filter and EGR valve need to be cleaned on a regular basis. The turbine frequently fails between 150 and 250 thousand kilometers.
