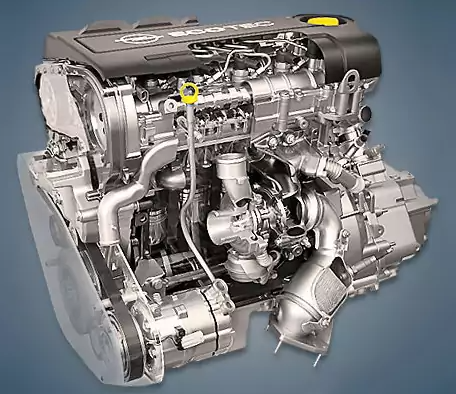

From 2004 to 2010, the German company produced the 1.9-liter diesel Opel Z19DT or 1.9 CDTi, which was fitted to popular models like the Astra, Vectra, and Zafira. Fiat developed this 8-valve engine, which Saab installed under the D207E index.
The engines Z13DTJ, Z13DTH, Z17DTH, and Z19DTH are also members of the Z family.
The engine was mounted on:
- Opel Astra H (A04) in 2005 – 2010;
- Opel Signum A (Z03) in 2004 – 2008;
- Opel Vectra C (Z02) in 2004 – 2008;
- Opel Zafira B (A05) in 2005 – 2010.
Specifications
| Production years | 2004-2010 |
| Displacement, cc | 1910 |
| Fuel system | Common Rail |
| Power output, hp | 120 |
| Torque output, Nm | 280 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 8v |
| Cylinder bore, mm | 82 |
| Piston stroke, mm | 90.4 |
| Compression ratio | 18.0 |
| Features | SOHC |
| Hydraulic lifters | no |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | Garrett GT1749MV |
| Recommended engine oil | 5W-40 |
| Engine oil capacity, liter | 4.6 |
| Fuel type | diesel |
| Euro standards | EURO 4 |
| Fuel consumption, L/100 km (for Opel Vectra 2007) — city — highway — combined |
7.4 4.7 5.9 |
| Engine lifespan, km | ~340 000 |
| Weight, kg | 180 |
Disadvantages of the Z19DT engine
This engine is straightforward and dependable because it lacks troublesome swirl flaps;
The metering valve is the Bosch Common Rail fuel system’s weak point; nozzles frequently start to pour at high mileage, but these are typically fixed;
Here, the turbine serves as a resource; however, the exhaust manifold may crack or distort around the fourth cylinder, and the geometry of the blades changes from coke to wedge.
