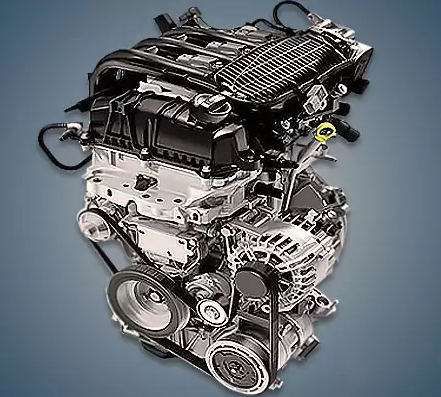

Since 2012, models with the PureTech 82 index have been equipped with the 1.2-liter, three-cylinder Peugeot EB2 or HMX engine. However, the EB2F engine is gradually replacing it. There are various variations of this power unit, including EB2D, EB2FA, EB2FD, and EB2FAD.
The EB family of engines includes EB0, EB2, EB2M, EB2DT, EB2DTS, and EB2ADTX.
Specifications
| Production years | since 2012 |
| Displacement, cc | 1199 |
| Fuel system | distributed injection |
| Power output, hp | 82 |
| Torque output, Nm | 118 |
| Cylinder block | aluminum R3 |
| Block head | aluminum 12v |
| Cylinder bore, mm | 75 |
| Piston stroke, mm | 90.5 |
| Compression ratio | 11.0 |
| Features | balancers |
| Hydraulic lifters | no |
| Timing drive | belt |
| Phase regulator | dual VTi |
| Turbocharging | no |
| Recommended engine oil | 0W-30 |
| Engine oil capacity, liter | 3.25 |
| Fuel type | petrol |
| Euro standards | EURO 5/6 |
| Fuel consumption, L/100 km (for Peugeot 108 2015) — city — highway — combined |
5.4 3.7 4.3 |
| Engine lifespan, km | ~270 000 |
| Weight, kg | 74.7 |
The engine was installed on:
- Citroen C1 II (B4) in 2014 – 2018;
- Peugeot C3 II (A51) in 2012 – 2017; C3 III (B61) since 2017;
- Peugeot C3 Aircross II (A88) in 2017 – 2019;
- Peugeot C4 Cactus I (E3) in 2014 – 2018; C4 Cactus II (F3) in 2018 – 2020;
- Peugeot C-Elysee I (R31) since 2016;
- Peugeot DS3 I (A55) in 2012 – 2016;
- DS DS3 I (A55) in 2016 – 2018;
- Opel Crossland X (P17) since 2017;
- Peugeot 108 I (B3) in 2014 – 2018;
- Peugeot 208 I (A9) in 2012 – 2019;
- Peugeot 2008 I (A94) in 2013 – 2019;
- Peugeot 301 I (M33) since 2012;
- Peugeot 308 II (T9) in 2013 – 2017.
Disadvantages of the Peugeot EB2 engine
A recall campaign was implemented for engines from the initial years because of the crankshaft’s axial play.
Many complaints regarding the oil burner after 100,000 kilometers of operation can also be found on specialized forums.
However, the timing belt in the oil bath is the primary issue here.
Its wear products clog oil channels, and it wears out quickly.
This engine’s oil pump is short-lived for the same reason.
