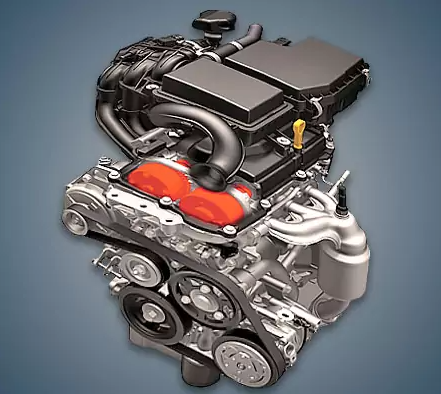

Since 2011, a factory in Japan has been assembling the 0.6-liter 12-valve Suzuki R06A engine, which powers the company’s well-known kei vehicles, including the Alto, Hustler, and different Wagon R models. The unit is available in two versions: atmospheric for 50–55 horsepower and turbocharged for 65 horsepower.
Specifications
| Production years | since 2011 |
| Displacement, cc | 658 |
| Fuel system | injector |
| Power output, hp | 50 – 55 (R06A) 65 (R06A-T) |
| Torque output, Nm | 60 – 65 (R06A) 95 – 100 (R06A-T) |
| Cylinder block | aluminum R3 |
| Block head | aluminum 12v |
| Cylinder bore, mm | 64 |
| Piston stroke, mm | 68.2 |
| Compression ratio | 11.0 – 11.5 (R06A) 9.1 (R06A-T) |
| Features | DOHC (R06A) DOHC, intercooler (R06A-T) |
| Hydraulic lifters | no |
| Timing drive | chain |
| Phase regulator | at intake and exhaust (R06A) at intake (R06A-T) |
| Turbocharging | no (R06A) yes (R06A-T) |
| Recommended engine oil | 0W-20 |
| Engine oil capacity, liter | 2.9 |
| Fuel type | petrol |
| Euro standards | EURO 5/6 |
| Fuel consumption, L/100 km (for Suzuki Alto 2017) — city — highway — combined |
4.8 2.9 3.7 |
| Engine lifespan, km | ~250 000 |
The engine was installed on:
- Suzuki Alto 7 (HA25) in 2011 – 2014; Alto 8 (HA36) since 2014;
- Suzuki Every 6 (DA17) since 2015;
- Suzuki Jimny 4 (GJ) since 2018;
- Suzuki Hustler 1 (MR31) in 2014 – 2019; Hustler 2 (MR52) since 2019;
- Suzuki Spacia 1 (MK32) in 2013 – 2017; Spacia 2 (MK53) since 2017;
- Suzuki Wagon R 5 (MH34) in 2012 – 2017; Wagon R 6 (MH35) since 2017;
- Suzuki MR Wagon 3 (MF33) in 2011 – 2016;
- Mazda Carol VI (HB25) in 2012 – 2014; Carol VII (HB36) since 2014;
- Mazda Flair I (MJ34) in 2012 – 2017; Flair II (MJ55) since 2017;
- Mitsubishi Town Box 2 (DS17) since 2015;
- Nissan Moco 3 (G33) in 2011 – 2016.
Disadvantages of the Suzuki R06A engine
Owners complain about the unit’s lengthy winter warm-up on specialized forums;
On runs of 150–200 thousand kilometers, the turbine in supercharged versions frequently fails;
When a thin timing chain is stretched, the valves bend because it has roughly the same resource. On trifles, sensors and unreliable ignition coils can cause this.
