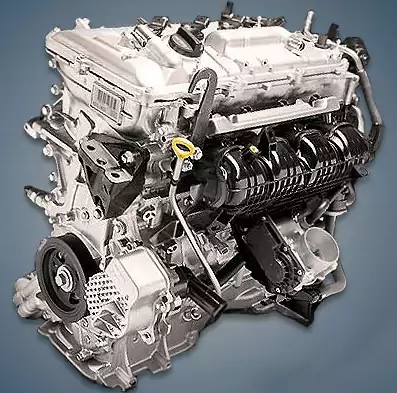

Since 2006, factories in China and the US have been producing the 1.8-liter Toyota 2ZR-FE engine for Lotus sports cars and front-wheel drive models like the Corolla and Auris. Every version of this engine has a Dual VVT-i variable valve timing system.
The engines in the ZR family are 1ZR-FE, 1ZR-FAE, 2ZR-FE, 2ZR-FAE, 2ZR-FXE, 3ZR-FE, and 3ZR-FAE.
The engine was mounted on:
- Toyota Allion 2 (T260) since 2007;
- Toyota Auris 1 (E150) in 2006 – 2012;
- Toyota Corolla 10 (E150) in 2006 – 2013; Corolla E160 since 2012; Corolla E170 since 2013;
- Toyota Matrix 2 (E140) in 2009 – 2014;
- Toyota Yaris 2 (XP90) in 2007 – 2011; Yaris 3 (XP130) since 2011;
- Lotus Elise 3 since 2011;
- Pontiac Vibe 2 in 2009 – 2010;
- Scion xD XP110 in 2007 – 2014.
Specifications
| Production years | since 2006 |
| Displacement, cc | 1798 |
| Fuel system | MPI |
| Power output, hp | 130 – 140 |
| Torque output, Nm | 170 – 175 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 80.5 |
| Piston stroke, mm | 88.3 |
| Compression ratio | 10.0 |
| Features | ACIS and ETCS-i |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | Dual VVT-i |
| Turbocharging | no |
| Recommended engine oil | 5W-20 |
| Engine oil capacity, liter | 4.2 |
| Fuel type | petrol |
| Euro standards | EURO 4/5 |
| Fuel consumption, L/100 km (for Toyota Matrix 2011) — city — highway — combined |
9.0 7.3 8.1 |
| Engine lifespan, km | ~250 000 |
| Weight, kg | 121 |
Disadvantages of the 2ZR-FE engine
Owners of cars with these engines typically complain about a progressive oil burner;
Many people are still concerned about unrelated knocks and noises while the power unit is operating;
Carbon deposits in the intake and on the throttle are the cause of the floating engine speed; oil leaks frequently occur, most frequently from the filter and under the timing chain cover; the pump resource rarely surpasses 50,000 km, and the timing chain stretches after 150,000 km.
