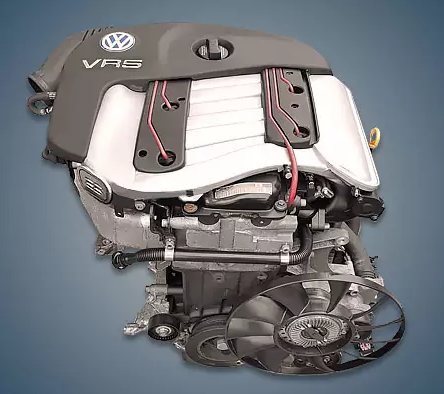

Produced between 1996 and 2001, the 2.3-liter 10-valve Volkswagen AGZ 2.3 VR5 engine was mounted longitudinally on the Passat B5 model and transversely on the Bora, Golf 4, and Seat Toledo. This power unit was given a different AZX index after the cylinder head was upgraded to a 20-valve one.
AGZ, AQN, and AZX are members of the EA395 series.
Specifications
| Production years | 1996-2001 |
| Displacement, cc | 2324 |
| Fuel system | injector |
| Power output, hp | 150 |
| Torque output, Nm | 205 |
| Cylinder block | cast iron VR5 |
| Block head | aluminum 10v |
| Cylinder bore, mm | 81 |
| Piston stroke, mm | 90.2 |
| Compression ratio | 10.1 |
| Features | no |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | no |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.0 |
| Fuel type | petrol |
| Euro standards | EURO 2/3 |
| Fuel consumption, L/100 km (for VW Passat 1999) — city — highway — combined |
13.5 7.4 9.7 |
| Engine lifespan, km | ~275 000 |
The engine was installed on:
- Volkswagen Golf 4 (1J) in 1997 – 2000;
- Volkswagen Jetta 5 (1K) in 1998 – 2001;
- Volkswagen Passat B5 (3B) in 1996 – 2000;
- Seat Toledo 2 (1M) in 1998 – 2001.
Disadvantages of the VW AGZ engine
The high fuel and lubricant consumption of all VR5 power units is well-known.
The timing chain is not very resource-rich, and replacing it is costly and challenging;
Air leaks or dirt on the throttle are typically the cause of the engine’s unstable operation;
Additionally, the engine frequently worries about electrical issues: a number of sensors malfunction; in this case, the valve cover is integrated with a gasket and completely replaces itself in the event of an oil leak.
