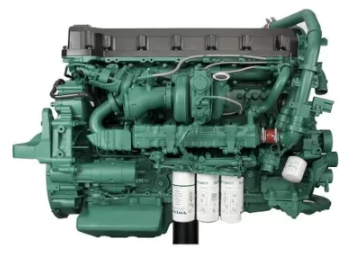

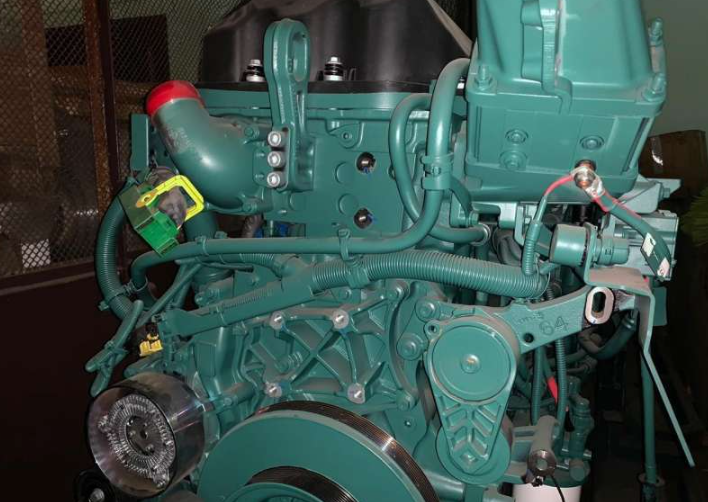

With an overhead camshaft, four valves per cylinder, and unit injectors, the D11C330 engine is a six-cylinder in-line engine with a displacement of 10.8 liters and an output of 330 horsepower. The engine satisfies the Euro 4 standard’s EU emission requirements.
The D11C is a lightweight, powerful, and cost-effective engine. As a result, it is appropriate for the transportation of liquid, bulk cargo, long-distance regional transportation, and light building materials—that is, in situations where low fuel consumption and performance are crucial.
Specifications
| Engine’s type | diesel |
| Power output, kW at rpm | 243 at 1600 |
| Power output, hp at rpm | 330 at 1600 |
| Displacement, cc | 10800 |
| Number of cylinders | 6 |
| Valves | 24 |
| Torque output, Nm / rpm | 950 at 1400 |
| Compression ratio (compression) | 17.3:1 |
| Cylinder bore, mm | 123 |
| Piston stroke, mm | 152 |
| Crankshaft bearings | 7 |
| Configuration | inline |
| Fuel type | diesel |
| Fuel system | direct injection |
| Turbine | turbo / charge air cooler |
| Euro standards | Euro 5 |
| Cylinder head | SOHC/OHC |
| Timing mechanism | spur gear |
| Timing | rocker arm |
| Cooling | water |
The engine’s basic design is identical to that of the larger Volvo engines. An overhead camshaft, four valves per cylinder, and a precise electronically controlled injection system are all features of this tough and dependable engine.
A large torque range offers excellent driving characteristics. Because the timing mechanism is at the back of the engine, vibration is lessened and a power take-off can be installed there.
Engine Benefits
- maximum torque for superior driving performance across a broad rpm range; economy;
- conforms to the Euro 4 standard;
- oil change once a year when using VDS4 oil or every 100,000 kilometers;
- high engine braking force using the optional Volvo engine brake (VEB);
- an optional rear-mounted power takeoff with a high power output;
- ventilation in the closed crankcase (optional).
