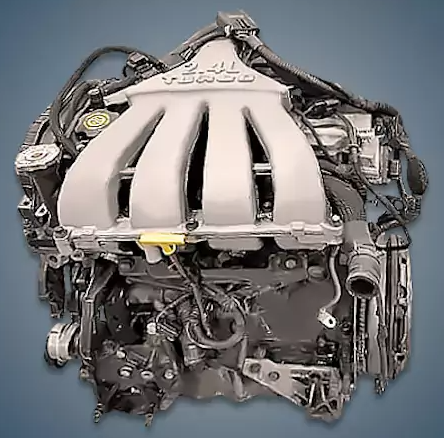

Only charged PT Cruiser models with manual and automatic transmissions were equipped with the 2.4-liter Chrysler EDT turbo engine, which was manufactured at the company’s facility between 2002 and 2009. In essence, this power unit is a scaled-down version of the renowned EDV turbo engine.
Internal combustion engines such as EBD, ECB, ECC, ECH, EDZ, and EDV are also part of the Neon series.
The engine was installed on:
- Chrysler PT Cruiser 1 (PT) in 2002 – 2009.
Specifications
| Production years | 2002-2009 |
| Displacement, cc | 2429 |
| Fuel system | injector |
| Power output, hp | 182 |
| Torque output, Nm | 285 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 87.5 |
| Piston stroke, mm | 101 |
| Compression ratio | 8.1 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | yes |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.7 |
| Fuel type | petrol |
| Euro standards | EURO 3/4 |
| Fuel consumption, L/100 km (for Chrysler PT Cruiser 2005) — city — highway — combined |
15.4 9.1 11.8 |
| Engine lifespan, km | ~220 000 |
Disadvantages of the EDT engine
Keep an eye on the cooling system, or the block head will quickly overheat;
Antifreeze leaks via thermostats and pipe cracks are also frequent;
The valve always bends here when the timing belt resource breaks, which is approximately 100,000 kilometers;
Fuel injectors need to be flushed frequently because they cannot handle bad gasoline;
This power unit frequently uses oil during a run of more than 150,000 kilometers.
