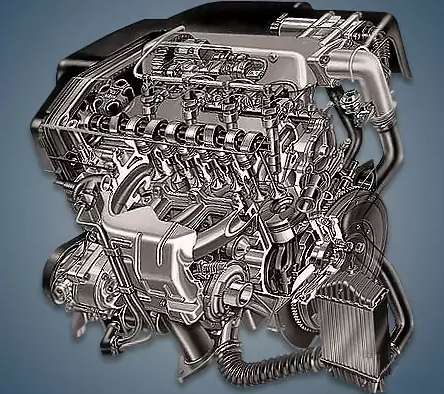

From 2005 to 2010, the 1.9-liter Fiat 186A9000 engine, also known as the Doblo 1.9 multijet, was assembled and fitted to two of the company’s models, including the Multipla and the second generation Doblo. This diesel engine had a straightforward 8-valve cylinder head without any hydraulic lifters.
Multijet I family: 199A2000, 199A3000, 186A9000, 192A8000, 937A5000, 839A6000, 939A3000.
Specifications
| Production years | 2005-2010 |
| Displacement, cc | 1910 |
| Fuel system | Common Rail |
| Power output, hp | 120 |
| Torque output, Nm | 210 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 8v |
| Cylinder bore, mm | 82 |
| Piston stroke, mm | 90.4 |
| Compression ratio | 18.0 |
| Features | SOHC, intercooler |
| Hydraulic lifters | no |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | Garrett GT1749MV |
| Recommended engine oil | 5W-40 |
| Engine oil capacity, liter | 4.5 |
| Fuel type | diesel |
| Euro standards | EURO 4 |
| Fuel consumption, L/100 km (for Fiat Doblo 2008) — city — highway — combined |
7.5 5.2 6.1 |
| Engine lifespan, km | ~380 000 |
| Weight, kg | 181 |
The engine was installed on:
- Fiat Doblo I (223) in 2005 – 2009;
- Fiat Multipla I (186) in 2006 – 2010.
Disadvantages of the Fiat 186A9000 engine
There are no ever-falling intake flaps in this straightforward and clever diesel engine;
The Bosch fuel system is dependable; issues only arise at high mileage.
This is typically manifested as intense engine vibrations while one of the nozzles is pouring;
Additionally, a clogged dosing valve on the injection pump can frequently cause the engine to stall;
The booster pump, the EGR valve, and the mass air flow sensor are this unit’s weak points.
