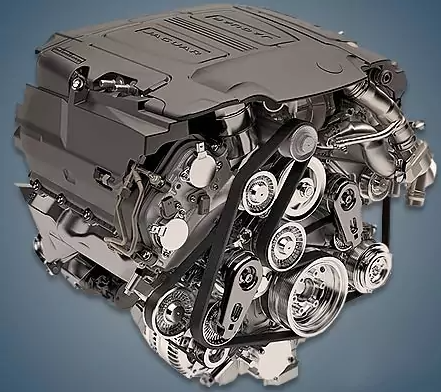

Since 2009, the company has been producing the 5.0-liter V8 Jaguar AJ133S 5.0 Supercharged engine, which is installed on charged versions of the company’s well-known models, including the XE, XK, XF, XJ, and F-Type. Land Rover SUVs have a comparable unit installed under the 508PS index.
AJ-V8 series: AJ126, AJ27, AJ27S, AJ28, AJ33, AJ33S, AJ34, AJ34S, AJ133, and AJ133S.
Specifications
| Production years | since 2009 |
| Displacement, cc | 4999 |
| Fuel system | direct injection |
| Power output, hp | 450 – 600 |
| Torque output, Nm | 580 – 700 |
| Cylinder block | aluminum V8 |
| Block head | aluminum 32v |
| Cylinder bore, mm | 92.5 |
| Piston stroke, mm | 93 |
| Compression ratio | 9.5 |
| Features | intercooler |
| Hydraulic lifters | no |
| Timing drive | chain |
| Phase regulator | on all shafts |
| Turbocharging | Eaton M112 |
| Recommended engine oil | 5W-20 |
| Engine oil capacity, liter | 7.25 |
| Fuel type | petrol |
| Euro standards | EURO 5 |
| Fuel consumption, L/100 km (for Jaguar XJ 2018) — city — highway — combined |
17.9 8.5 11.9 |
| Engine lifespan, km | ~350 000 |
The engine was installed on:
- Jaguar XE 1 (X760) since 2017;
- Jaguar XF 1 (X250) in 2009 – 2015;
- Jaguar XJ 8 (X351) in 2009 – 2019;
- Jaguar XK 2 (X150) in 2009 – 2014;
- Jaguar F-Pace 1 (X761) since 2018;
- Jaguar F-Type 1 (X152) since 2012.
Disadvantages of the Jaguar AJ133S engine
The timing chain served very little on the engines in the early years before the resource expanded to 150,000 kilometers;
Additionally, the supercharger drive’s damper sleeve breaks down over time;
Rarely, but occasionally, this motor’s valve seats come loose;
The throttle and nozzles must be cleaned frequently because the engine dislikes poor fuel;
Heat exchanger leaks and burst pipes are the remaining issues.
