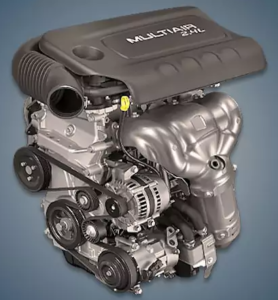

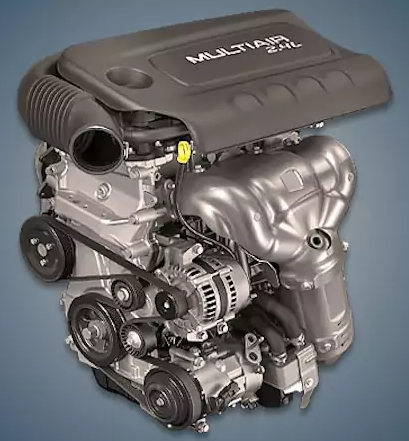

Since 2012, the company has been manufacturing the 2.4-liter Jeep ED6 or Tigershark gasoline engine, which powers its most well-known models, including the Cherokee, Compass, and Renegade. A unique cylinder head with MultiAir technology sets this power unit apart.
There is still just one motor in the Tigershark series.
The engine was mounted on:
- Chrysler 200 2 (UF) in 2014 – 2016;
- Dodge Dart 1 (PF) in 2012 – 2016;
- Jeep Cherokee 5 (KL) in 2013 – …;
- Jeep Compass 2 (MP) in 2016 – …;
- Jeep Renegade 1 (BU) in 2014 – …
Specifications
| Production years | 2012-… |
| Displacement, cc | 2360 |
| Fuel system | injector |
| Power output, hp | 175 – 185 |
| Torque output, Nm | 230 – 245 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 88 |
| Piston stroke, mm | 97 |
| Compression ratio | 10.0 |
| Features | MultiAir |
| Hydraulic lifters | no |
| Timing drive | chain |
| Phase regulator | at the inlet |
| Turbocharging | no |
| Recommended engine oil | 5W-20 |
| Engine oil capacity, liter | 5.2 |
| Fuel type | petrol |
| Euro standards | EURO 5/6 |
| Fuel consumption, L/100 km (for Jeep Cherokee 2019) — city — highway — combined |
12.0 6.8 8.8 |
| Engine lifespan, km | ~250 000 |
Disadvantages of the ED6 engine
Since this motor hasn’t been manufactured in a while, comprehensive failure data hasn’t been gathered;
Owners typically lament excessive oil consumption on specialized forums;
Using a thicker lubricant from an oil burner on low runs usually helps;
Long-term oil waste has clogged the MultiAir channels, and fixing them is expensive;
Oil getting into spark plug wells is a common cause of ignition coil failure.
