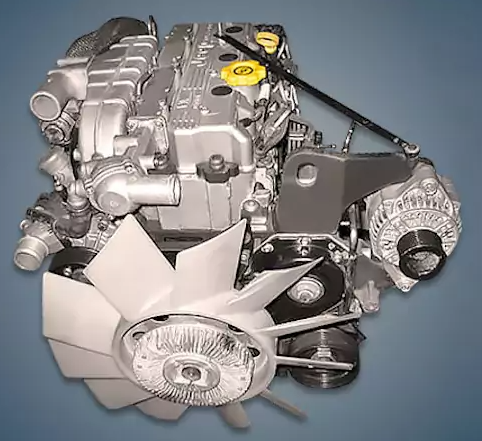

From 1991 to 2001, Cherokee and Grand Cherokee SUVs, as well as Voyager and Caravan minivans, were equipped with the 2.5-liter, four-cylinder Jeep ENC diesel engine. The 425 OHV is another name for this diesel engine, which was created by the Italian business VM Motori.
ENC, ENJ, ENS, ENR, EXF, EXJ, EXN, and EXA are all part of the VM Motori series.
Specifications
| Production years | 1991-2001 |
| Displacement, cc | 2499 |
| Fuel system | prechamber |
| Power output, hp | 112 – 118 |
| Torque output, Nm | 260 – 280 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 8v |
| Cylinder bore, mm | 92 |
| Piston stroke, mm | 94 |
| Compression ratio | 21 |
| Features | OHV |
| Hydraulic lifters | yes |
| Timing drive | chain/gear |
| Phase regulator | no |
| Turbocharging | IHI VA59A – VA63A |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 6.8 |
| Fuel type | diesel |
| Euro standards | EURO 1 |
| Fuel consumption, L/100 km (for Jeep Grand Cherokee 1995) — city — highway — combined |
14.2 8.6 10.3 |
| Engine lifespan, km | ~250 000 |
The engine was installed on:
- Chrysler Voyager 2 (ES) in 1991 – 1995;
- Chrysler Voyager 3 (GS) in 1995 – 2000;
- Dodge Caravan 2 (ES) in 1991 – 1995;
- Dodge Dakota 2 (DN) in 1998 – 2001;
- Jeep Cherokee 2 (XJ) in 1993 – 2001;
- Jeep Grand Cherokee 1 (ZJ) in 1993 – 1998.
Disadvantages of the ENC engine
The distinct cylinder heads in this diesel frequently crack;
Additionally, they must be stretched on a regular basis to prevent significant lubricant leaks;
The turbine is notoriously unreliable; occasionally, it can drive oil up to 100,000 kilometers;
Although they are expensive, the hoses that go to the turbine and intercooler are frequently frayed;
They continue to complain about vibrations and noise at work on the forum.
