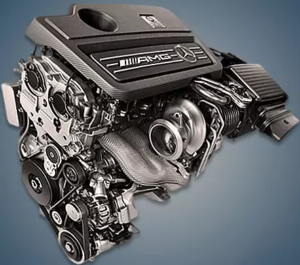

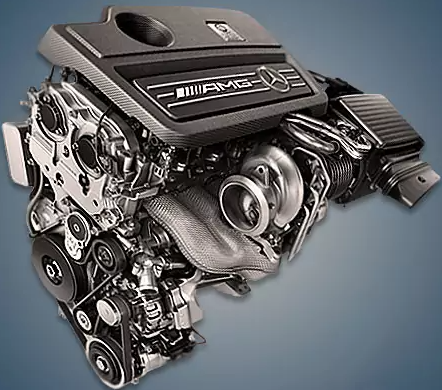

From 2013 to 2019, the Mercedes AMG M133, a 2.0-liter turbocharged engine, was manufactured in Germany and installed on charged versions of popular models like the A-Class, CLA-Class, and GLA-Class. This engine was designed for vehicles that had a transverse power unit.
M102, M111, M133, M139, M166, M200, M254, M260, M264, M266, M270, M271, M274, and M282 are the R4 Mercedes engines.
Specifications M 133 DE 20 AL
| Production years | 2013 – 2019 |
| Displacement, cc | 1991 |
| Fuel system | direct injection |
| Power output, hp | 360 – 381 |
| Torque output, Nm | 450 – 475 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 83 |
| Piston stroke, mm | 92 |
| Compression ratio | 8.6 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | on all shafts |
| Turbocharging | BorgWarner B03G |
| Recommended engine oil | 0W-40 |
| Engine oil capacity, liter | 5.5 |
| Fuel type | petrol |
| Euro standards | EURO 6 |
| Fuel consumption, L/100 km (for Mercedes GLA 45 AMG 2017) — city — highway — combined |
9.9 6.1 7.5 |
| Engine lifespan, km | ~250 000 |
| Weight, kg | 147.8 |
The engine was installed on:
- Mercedes A-Class W176 in 2013 – 2018;
- Mercedes CLA-Class C117 in 2013 – 2019;
- Mercedes GLA-Class X156 in 2014 – 2019.
Disadvantages of the Mercedes M133 engine
For this boost, this is a very dependable turbo engine with no unique issues; even the Nanoslide coating in place of cast iron sleeves lasts a very long time and does not crumble; however, it is important to keep in mind that such units are very demanding in terms of quality of service; and the direct fuel injection system with piezo injectors does not tolerate low-quality gasoline; on specialized forums, there are complaints about oil leaks, low life of ignition coils, and timing chains.
