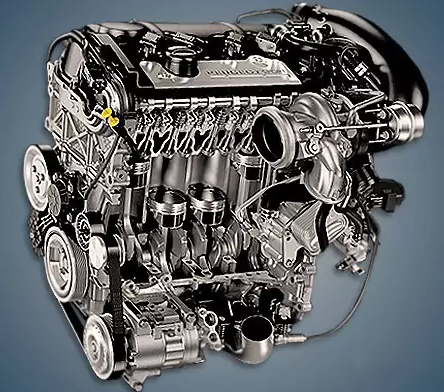

From 2015 to 2018, 308 1.6 THP 270 GTi hatchbacks were equipped with the 1.6-liter Peugeot EP6FDTR or 5GP engine, which was manufactured in France and came with a 6-speed manual BVM6 transmission. This motor was given a new index, EP6FADTR, following the switch to stricter environmental regulations Euro 6d.
The Prince family of turbo engines includes the EP6DT, EP6DTS, EP6CDT, EP6CDTM, EP6CDTR, EP6CDTX, EP6FDT, EP6FDTM, and EP6FDTR.
Specifications
| Production years | 2015-2018 |
| Displacement, cc | 1598 |
| Fuel system | direct injection |
| Power output, hp | 270 (power is limited to 250 in some markets) |
| Torque output, Nm | 330 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 77 |
| Piston stroke, mm | 85.8 |
| Compression ratio | 10.5 |
| Features | Valvetronic |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | on both shafts |
| Turbocharging | BorgWarner K04 |
| Recommended engine oil | 0W-30 |
| Engine oil capacity, liter | 4.25 |
| Fuel type | petrol |
| Euro standards | EURO 6 |
| Fuel consumption, L/100 km (for Peugeot 308 GTi 2016) — city — highway — combined |
8.1 4.9 6.0 |
| Engine lifespan, km | ~220 000 |
| Weight, kg | 140 |
The engine was installed on:
- Peugeot 308 II (T9) in 2015 – 2018.
Disadvantages of the EP6FDTR engine
The coking of the intake and oil lines as a result of overheating is the primary issue here.
Additionally, the turbine will fail due to oil starvation if you miss this opportunity.
The timing chain does not have a lot of resources either; occasionally, it is replaced up to 100,000 kilometers.
The thermostat, water pump, and injection pump are the power unit’s weak points.
