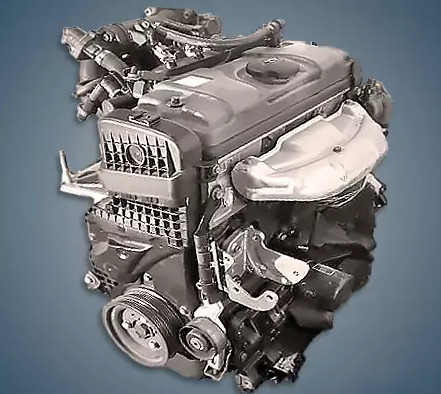

Produced between 1993 and 2001, the 1.6-liter 8-valve Peugeot TU5JP or NFZ engine was fitted to a number of the company’s small models at the time, including the 106, 206, and 306. Concurrently, a 103 horsepower sports version of the engine was manufactured under the TU5J2 index.
TU1JP, TU3K, TU3JP, TU3A, TU5JP, and TU5JP4 are engines belonging to the TU family.
The engine was mounted on:
- Peugeot 106 I (S1/S2) in 1993 – 1996;
- Peugeot 206 I (T1) in 1998 – 2000;
- Peugeot 306 I (N3/N5) in 2006 – 2012;
- Peugeot Partner I (M49/M59) in 1996 – 2001;
- Citroen Saxo in 1996 – 2001;
- Citroen Xsara in 1997 – 2001;
- Citroen Xsara Picasso in 1999 – 2001;
- Citroen Berlingo in 1996 – 2001.
Specifications
| Production years | 1993-2001 |
| Displacement, cc | 1587 |
| Fuel system | injector |
| Power output, hp | 88 – 95 |
| Torque output, Nm | 135 – 140 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 8v |
| Cylinder bore, mm | 78.5 |
| Piston stroke, mm | 82 |
| Compression ratio | 9.6 – 10.2 |
| Features | no |
| Hydraulic lifters | no |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | no |
| Recommended engine oil | 5W-40 |
| Engine oil capacity, liter | 3.25 |
| Fuel type | petrol |
| Euro standards | EURO 1/2 |
| Fuel consumption, L/100 km (for Peugeot 106 1995) — city — highway — combined |
9.9 5.7 6.8 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 125 |
Disadvantages of the TU5JP engine
A generally dependable device frequently worries about ignition system component failures;
Floating engine speed is caused by contamination of the throttle and idle control;
Overheating causes valve stem seals to turn tan, and a striking oil burn develops;
The timing belt, which requires a significant overhaul, may burst before the planned 90,000 kilometers;
Remember to change the valves’ thermal clearances roughly every 100,000 kilometers.
