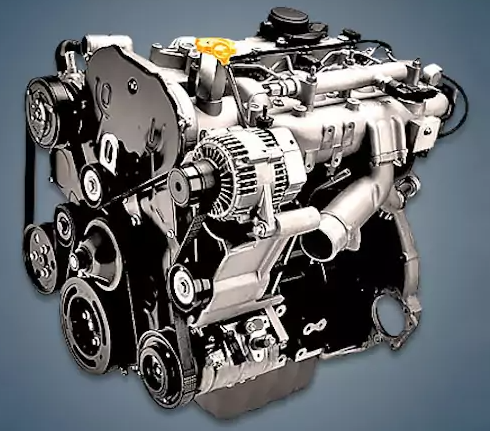

The popular Voyager minivan and the Cherokee/Liberty KJ SUV were equipped with Chrysler’s 2.8-liter ENR or 2.8 CRD diesel engine, which was manufactured between 2000 and 2007. This diesel engine, which goes by the R428 DOHC index, was created by the Italian business VM Motori.
ENC, ENJ, ENS, ENR, EXF, EXJ, EXN, and EXA are all part of the VM Motori series.
Specifications
| Production years | 2000-2007 |
| Displacement, cc | 2766 |
| Fuel system | Common Rail |
| Power output, hp | 150 – 163 |
| Torque output, Nm | 360 – 400 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 94 |
| Piston stroke, mm | 100 |
| Compression ratio | 17.5 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | Garrett GTB1756VK |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 6.5 |
| Fuel type | diesel |
| Euro standards | EURO 3 |
| Fuel consumption, L/100 km (for Chrysler Voyager 2006) — city — highway — combined |
11.3 6.7 8.4 |
| Engine lifespan, km | ~320 000 |
The engine was installed on:
- Chrysler Voyager 4 (RG) in 2000 – 2007;
- Jeep Cherokee 3 (KJ) in 2001 – 2007.
Disadvantages of the ENR engine
The high pressure fuel pump regulator valve is the diesel engine’s fuel system weak point; piezo injectors are scarce and challenging to remove; the turbine is unreliable and may need to be repaired up to 100,000 kilometers;
The timing belt typically only breaks the rocker when it breaks after 150,000 kilometers. Frequently, air leaks through the fuel filter heater connector.
