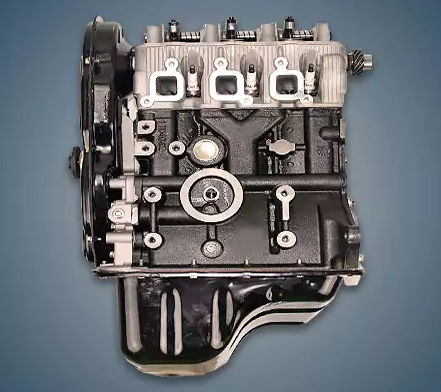

Since 1981, a number of companies have produced the 0.8-liter Suzuki F8B engine, which is found in many low-cost Asian brands of small cars. The famous Daewoo Matiz 3-cylinder unit was based on this motor.
F-series engines include the F6A, F8B, F10A, and F10D.
Specifications
| Production years | since 1981 |
| Displacement, cc | 796 |
| Fuel system | carburetor / injector |
| Power output, hp | 35 – 45 |
| Torque output, Nm | 55 – 65 |
| Cylinder block | cast iron R3 |
| Block head | aluminum 6v |
| Cylinder bore, mm | 68.5 |
| Piston stroke, mm | 72 |
| Compression ratio | 8.7 – 9.3 |
| Features | SOHC |
| Hydraulic lifters | no |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 2.7 |
| Fuel type | petrol |
| Euro standards | EURO 1/2 |
| Fuel consumption, L/100 km (for Suzuki Alto 1983) — city — highway — combined |
6.7 4.5 5.3 |
| Engine lifespan, km | ~250 000 |
The engine was installed on:
- Suzuki Alto 1 (SS) in 1981 – 1984; Alto 2 (CA) in 1984 – 1988;
- Suzuki Bolan in 1983 – 2009;
- Suzuki Mehran since 1988.
Disadvantages of the Suzuki F8B engine
The most common topics of discussion on specialized forums are lubrication leaks and ignition system issues; the timing belt is meant to last 90,000 kilometers, but if it bursts earlier, the valves will bend 100%; low-quality fuel causes candles to fail quickly and nozzles to clog;
Every 30,000 kilometers, the valves are adjusted; hydraulic lifters are not used.
